LC DX Mutilmode OM4 OM3 Patch Cord Customized Breakout

LC DX Mutilmode OM4 OM3 Breakout Patch Cord

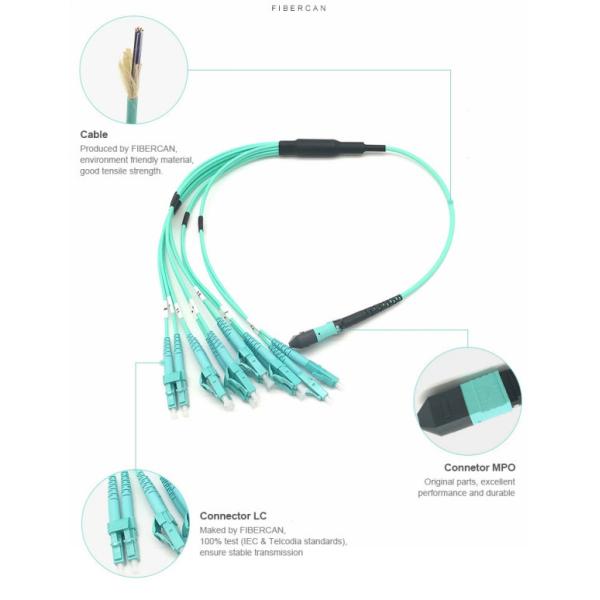

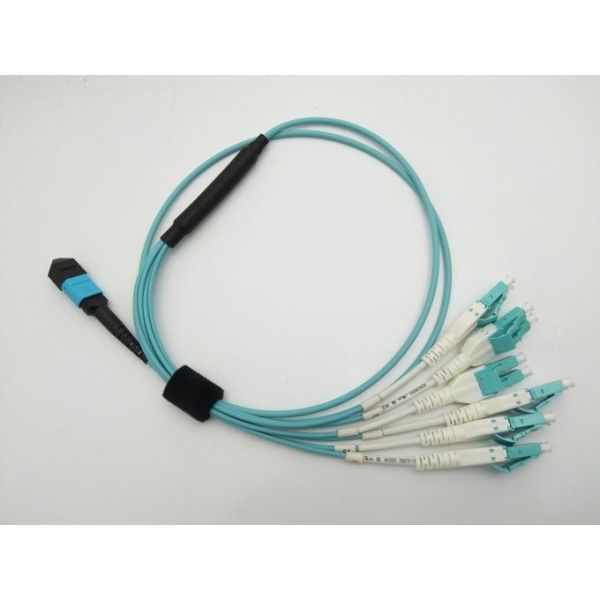

12 core MTP MPO to 6 Uniboot LC-DX Mutilmode OM3 Breakout Patch Cord Aqua Cable
Description:
4cores/8cores/12cores/24cores breakout fan-out patch cords, MPO/MTP-SC OM1/OM2/OM3. Key up, Key down types. Short length(<=35cm) used inside of module box.
* Push-pull latching
* Easy assembly, no crimp tool needed
* Alignment achieved with high precision guide pins
* Designed for low loss and standard loss SM and MM applications
* Ruggedized round cable, oval cable and bare ribbon options available
* Color coeed housings available to differentiate fiber type, polish type and/or connector grade

Features:
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade

Good in repeatability and exchangeability

Application:
MPO/MTP is the high density of optical fiber pre-connect system which is generally use in three areas.

· The data center application with high density environment
· The optical fiber to the building
· The internal connector application in fiber equipment such as Splitter,

· 40G / 100G SFP and SFP

Specification:

Mutilmode OM4 Patch Cord

Mutilmode OM3 Patch Cord

OM3 Fiber Optic Patch Cord

LC DX Mutilmode OM4 OM3 Patch Cord Customized Breakout Images
