Multimode Simplex 8,12,24 Cores MPO To LC Or SC Jumper Cable Fiber Optic Assembly Cable

Name: Multimode Simplex 81224 Cores MPO To LC Or SC Jumper Cable Fiber Optic Assembly Cable
Brand: Senko / US CONEC / Furukawa Connector
Price: 30 USD

Wholesale Multimode Simplex 8,12,24 Cores MPO To LC Or SC Jumper Cable Fiber Optic Assembly Cable from china suppliers

Brand Name : Senko / US CONEC / Furukawa Connector

Model Number : MPO patch cord

Certification : ISO 9001:2015

Place of Origin : Shenzhen

MOQ : 1 Pcs

Price : USD 30~60 / pcs

Payment Terms : T/T, Western Union

Supply Ability : 50K

Delivery Time : 5-8days

Packaging Details : 1 pcs / PE bag , box

Cable Color : Aqua , orange, purple,Yellow

MPO outshell color : Aqua, Beige , Green,Yellow

MPO connector : MPO , MTP(US Connec brand)

Length : 1M,2M,3M,……300M

Contact Now

Specifications
* MTP to 8 , 12 , 24 cores LC/ SC
* MMF(50/125um), OM3, 8LC High fiber density (maximum 24 fibers for Multimode)
* Insertion loss : <0.7 dB (<0.5dB Optional)
* Return loss : >35dB
* Insert- pull test : 500times* Operation temperature : -40°C~+80°C

Application
* Telecom system
* Cabling system
* High Density optical laser
* QSFP devices

Connector Performance Specifications:

Connector Type	12 or 24 -Fiber MPO
Polish	PC(MM); APC(SM)
Housing Colour	MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow)
Insertion Loss, Typical	≤ 0.10 dB
Insertion loss, max.	≤ 0.35 dB
Durability(500 Matings)	< 0.2dB

Connector Type	2-Fiber LC Duplex Uniboot
Polish	UPC
Housing Colour	Aqua
Insertion Loss, Typical	≤ 0.10 dB
Insertion loss, max.	≤ 0.35 dB
Durability(1000 Matings)	< 0.2dB

Fiber Type	OS2, OM1, OM2, OM3, OM4 (corning Clear Curve)
Fiber Count	12,24 cores
Outer diameter	12cores:4.5±0.2mm ; 24cores:5.4±0.2mm
Outer jacket Colour	OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Purple)
Outer jacket material	LSZH,OFNP,OFNR
Tensile strength	500N
Operating Temperature	-20 ~ +60°C
Storage Temperature	-40 ~ +70°C

Multimode Simplex 8,12,24 Cores MPO To LC Or SC Jumper Cable Fiber Optic Assembly Cable

Product Tags:

patch cord optical fiber

fiber optic cassette

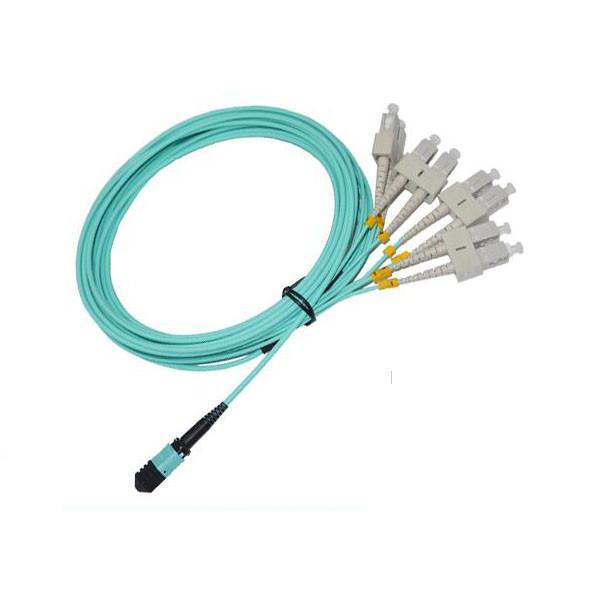

Multimode Simplex 8,12,24 Cores MPO To LC Or SC Jumper Cable Fiber Optic Assembly Cable Images
